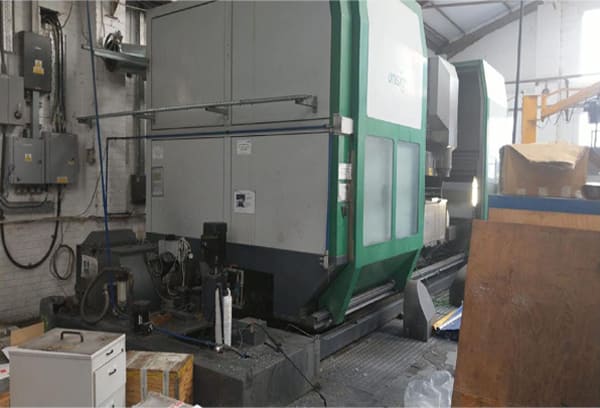

Old And Used Unisign Unipro 5L CNC Machining Centre

  •   X Axis Travel - 3000 MM
  •   Y Axis Travel - 600 MM
  •   Z Axis Travel - 500 MM
  •   Admissible load per clamping table 2000Kg
  •   Direct Drive Spindle (No Belt Drive)
  •   Water Cooled Main Drive AC 36 Kw (S6 - 40%) 26 Kw (S1 - 100%)
  •   Spindle Speed 12000 Rpm, Program Step 1 Rpm
  •   Spindle Positioning per Degree (M19)
  •   Drilling from Solid D - 50MM Tapping M30

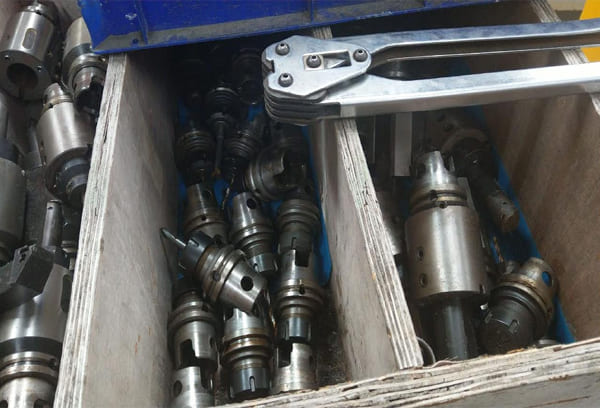

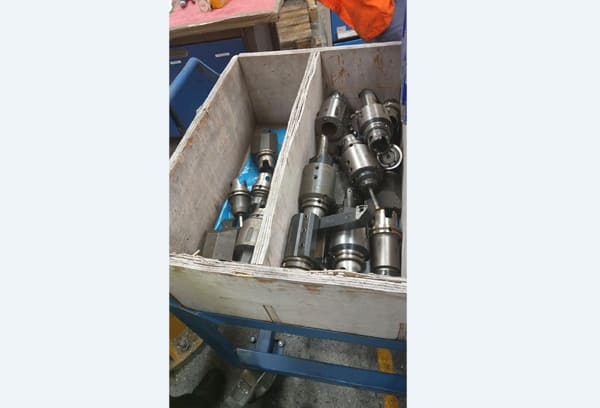

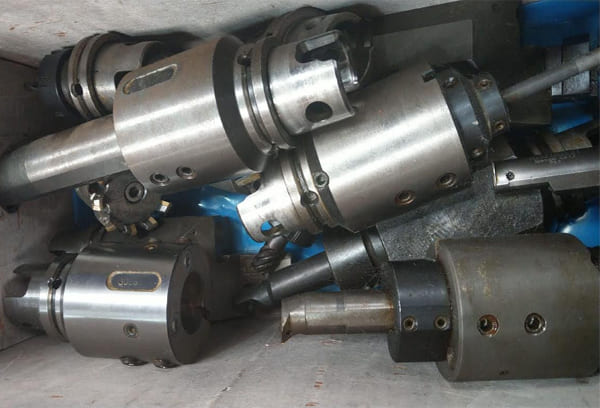

  •   Tool Taper Size HSK 63 In acc. With DIN 69893, From A.
  •   Automatic Tool Taper Cleaning with compressed air
  •   Distance Spindle nose to table Min. 200MM / Max 700MM
  •   Spindle torque Max. 180Nm
  •   Main Spindle Bearing Diameter Dia 70MM
  •   Milling 400 Cm3/Min
  •   Hydraulically Activated tool release
  •   Manual tool Change at any position inside the work envelop.
