Name: CNC 4u.in.
Address: PLOT NO. C56 GF, SECTOR D1, TRONICA CITY,, Ghaziabad, Uttar Pradesh, 201102, India
Telephone: +91-9990333571
Price range: ?
Rating: 4.2

Max. Swing: 560MM
Max. Machining Diameter: 410MM
Max. Machining Length: 1180MM
Max. Bar Work Diameter: 75MM

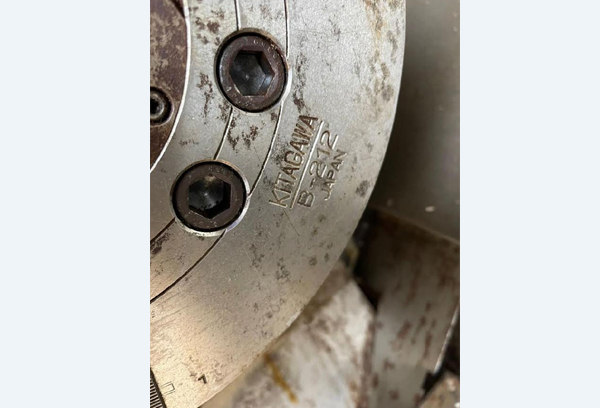

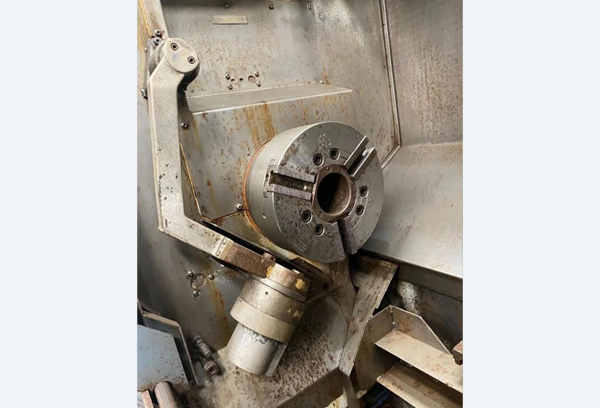

Chuck:300MM
Spindle Speed: 35 to 3500 RPM
X Axis Stroke: 245MM
Z Axis Stroke: 1545MM

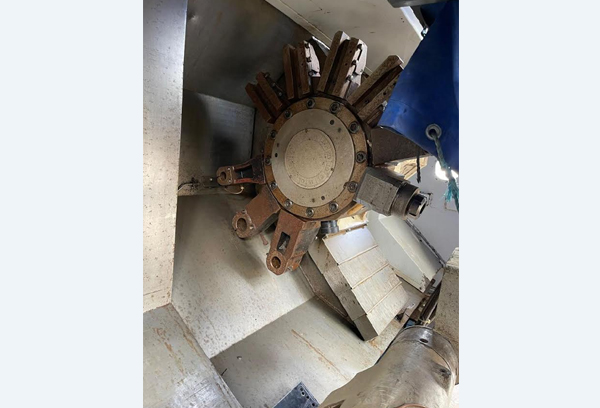

Turret Tool Capacity: (12 x 2) 24
Turret Index Time (1 Step / Full Step): 0.9 Sec / 2.2 Sec
Rotary Tool Speed Range: 120 to 3000 RPM
Rapid Traverse Rate. X & Z Axis: 708 / 945 IPM
Rapid Traverse Rate C Axis: 100 RPM
Main Spindle Motor, 30 Min. Rating: 29 HP A.C.
Sub Spindle Motor, 10 Min. rating: 10 HP A.C.
Rotary Tool Motor, 10 Min. rating: 7.5 HP A.C.

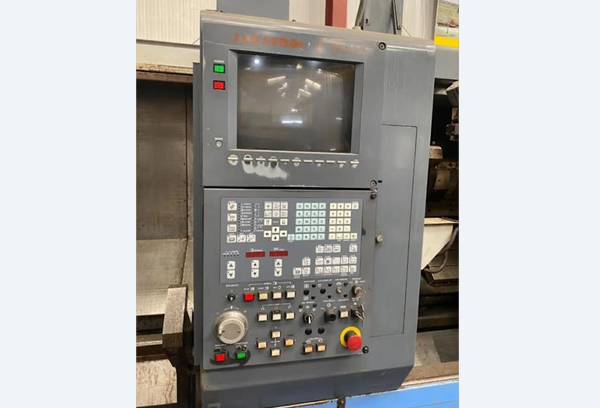

EQUIPPED WITH: Mazak CNC Control
Turret Tool Holders- Approx. 10
Chip Conveyor

Request a Quote

Mazak SQT-28M CNC Lathe
