Daewoo Puma 12S
Daewoo Puma 12S
Supplier of Cnc Lathe Machine
Importers of CNC Turning Center
Dealers of Vertical Machining Center
Supplier Cylindrical Grinding Machine
Dealer of Used Cnc Lathe Machine
- Brand Daewoo
- Maximum Turning Diameter 380 MM
- Distance Between Centers 1000 MM

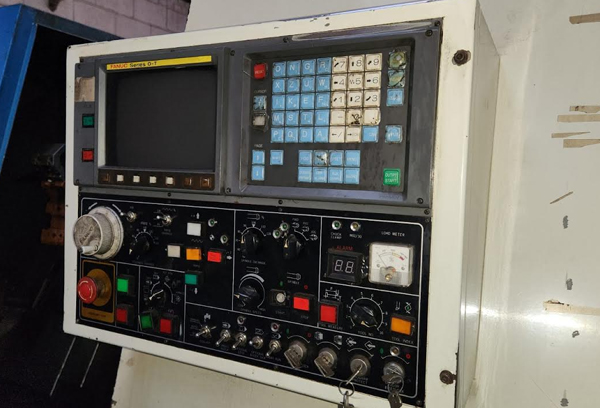

- Controller Fanuc OT Control
- Swing Over Bed 570 MM
- Max Spindle Speed 15-3000 RPM

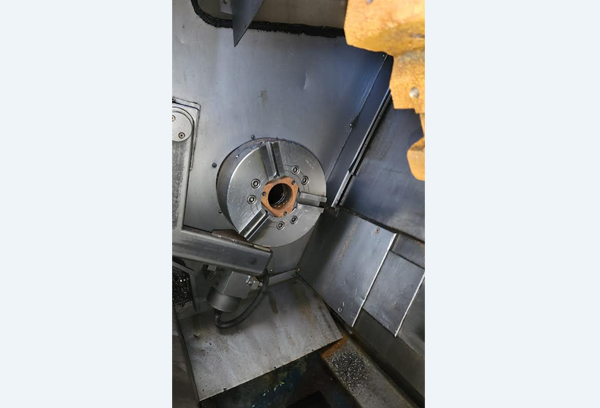

- Standard Chuck Size 305 MM
- Tailstock Quill Dia 110/100 MM
- Servo Motor Power X/Z 1.8/3.5 KW
- Travel Distance X/Z 200/800 MM
- Rapid Traverse X/Z 12/16 m/min
- Coupling Dia 320 MM
- Slant Angle 60 Degree

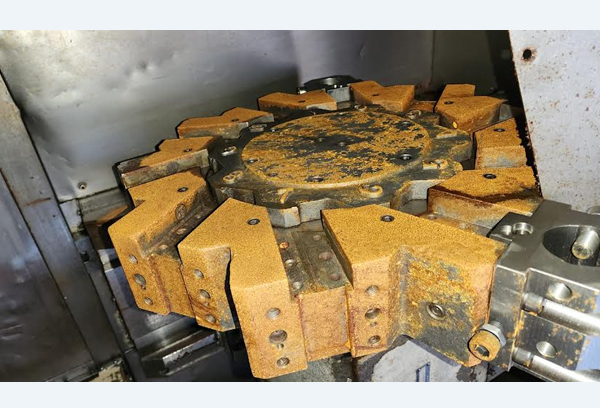

- Turret Station 12 ST
- Ball Screw Dia X/Z 40/50 MM
- Spindle Bore 91 MM
- Max Bar Working Dia 77 MM
- Recom Turning Diameter 320 MM
- Cylinder I.D 78 Mm
- Spindle Nose ASA A28
- Bearing Dia Front Rear 140/120 MM
- Draw Tube Id 78 MM
- Taper Of Center MT NO #5
