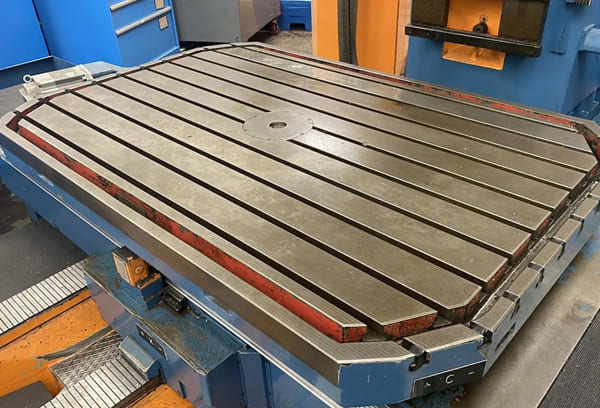

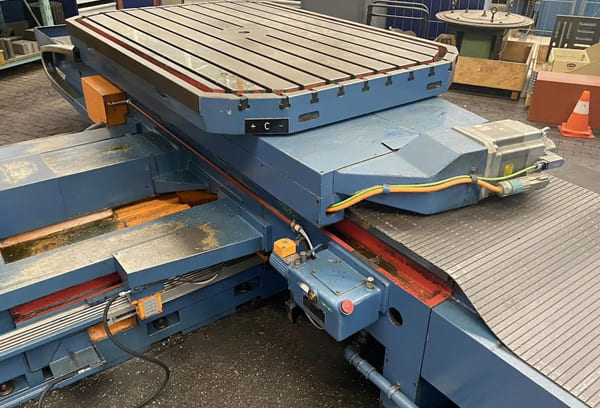

Table size: 1800x1200 mm
Turnable: 360 degr.
Number of T-slots: 10x 18 mm
Table longitudinal movement: 2400 mm
Table cross movement: 1200 mm
Vertical movement of the main carriage: 880 mm
Movement of the spindle carriage: 300 mm

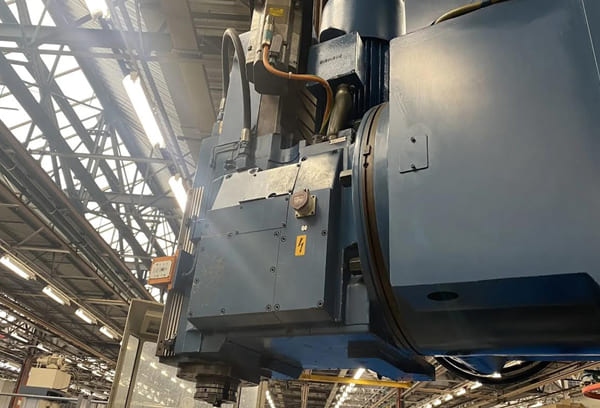

Spindle head can be rotated to both sides: 90°
Range of the spindle : 1230 mm
Max. workpiece height: 980 mm
Max. charge on table: 5000 kg
X/Y/Z-axis movement: 4-3500 mm/min
W-axis movement: 2-800 mm/min
C-axis movement: 4-4500 mm/min
Number of spindle speeds: 18

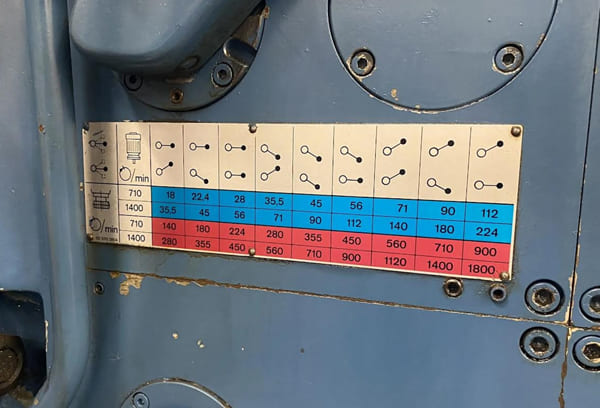

Spindle speeds: 35,5-1800 Rpm

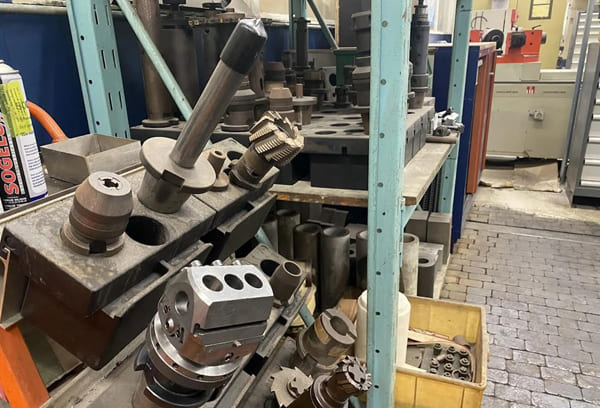

Taper: ISO 50 (DIN2079)
Spindle motor: 15 kW

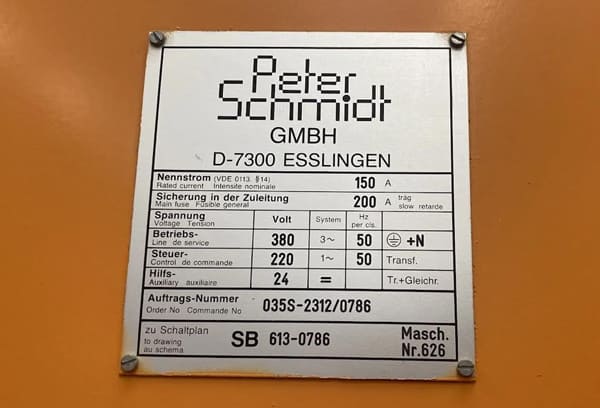

Total power: 48 kW
Floor surface: approx. 6000x5000 mm
Machine height: 4500 mm
Machine weight: approx. 20.000 kg

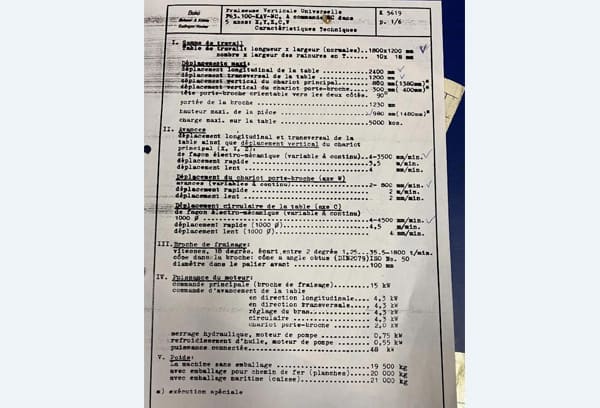

Technical attributes

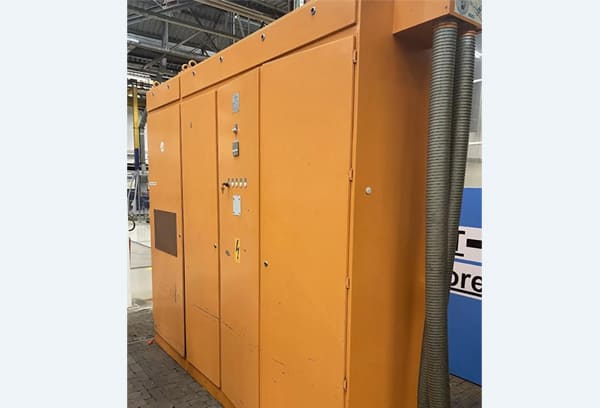

Control SIEMENS
Table surface area l x w 1800x1200 mm

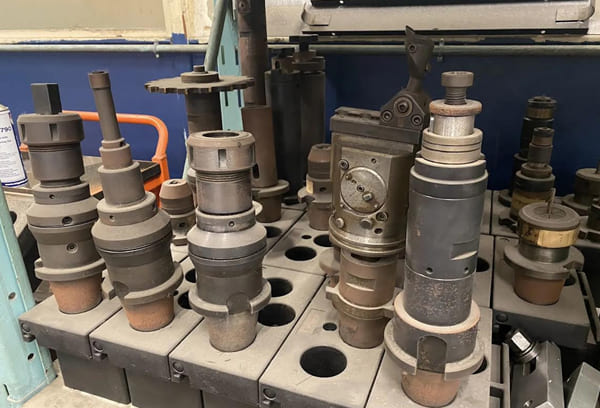

Tool taper ISO 50
Turning speed range 35,5 - 1800 rpm
Total power requirement 48 kW
Weight approx. 20000 kg
Dimensions (l x w x h) approx. 6000x5000x4500 mm

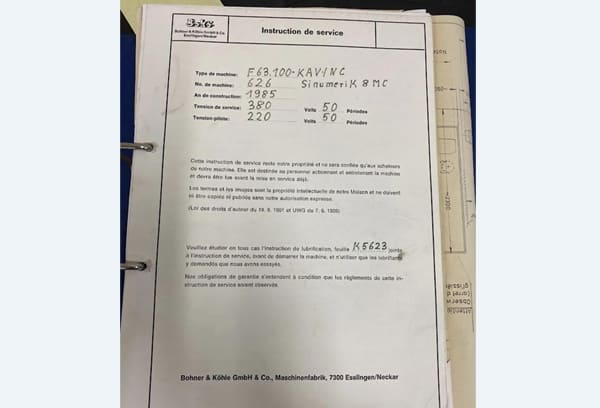

Year of construction 1985
Machine quality unchecked

Request a Quote

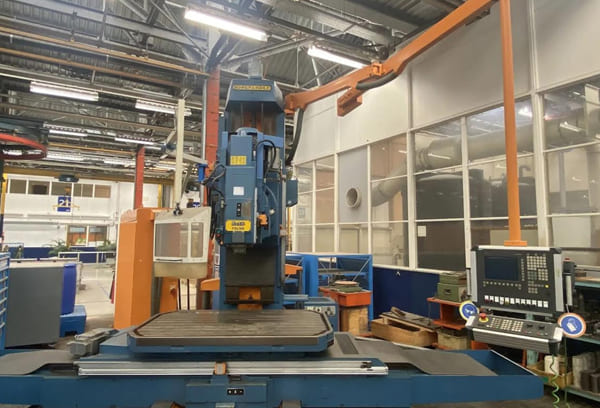

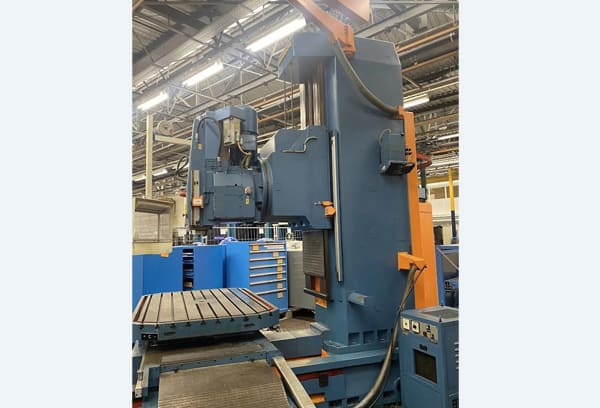

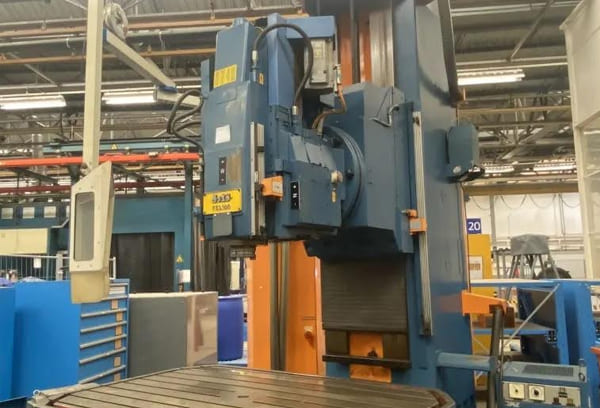

BOHNER & KÖHLE F63.100 Vertical Milling Machine
